Cylinder Empty Perfume Spray Bottle With Ball Shape Cap Lid

Material: Glass
Capacity: 30ml ,50ml,100ml Color: Transparent,Customized
Usage: Essential Oil, Other Cosmetic, Perfume, Skin Care, Skin Care Serum
Customization capability: Hot Stamping, Frosting,Inside Engraving, Clear, SCREEN PRINTING, Sizes, Colors, Bottle Types, Logo, Sticker or Label, Packing Box, etc
Packaging: As per customer requirements
Transportation method: As per customer requirements Sample:Provided Freely
Product Description

Cylinder Empty Perfume Spray Bottle With Ball Shape Cap Lid | Glass Fragrance Packaging With Spherical Closure

This is a glass fragrance bottle called the Cylinder Empty Perfume Spray Bottle With Ball Shape Cap Lid. It was made for brands that care about both structure and shelf appearance. It is made by Xuzhou Muzhishi Crafts Co., Ltd. and comes in 30ml, 50ml, and 100ml sizes. It has a high-clarity tube body with a wall thickness of at least 1.5mm and a spherical closure that can be made of UV-stabilized resin or glass balls. We can handle both OEM and ODM orders, and sample prototypes can be sent out in 3 to 5 days.

Who We Serve

This bottle meets the needs of three different types of buyers.

Niche perfume brands use it for limited-edition releases, and the ball cap is a signature part of the design. High-concentration Extrait de Parfum recipes can be used with this glass.

Luxury Hospitality Buyers choose the spherical cap over the cylindrical body because it is easier for machines to clean, and the cylinder body because it is easier to hold. This makes it a good fit for refillable room fragrance programs.

The micro-mist pump is used by high-end beauty stores for professional sampling counters. The pump is made to work with over 500 operations without breaking.

Technical Specifications of Cylinder Empty Perfume Spray Bottle With Ball Shape Cap Lid

Specification Details
Material High-clarity glass body, plastic ball cap
Capacity Options 30ml, 50ml, 100ml
Colors Available Transparent, custom colors
Sealing Type Pump sprayer with airtight seal
Shape Cylindrical body
Closure Type Screw cap with ball design
Surface Options Gold stamp, frosting, silk screen, engraving
Model Numbers CP-P-052, CP-P-052-1, CP-P-052-2
Origin Jiangsu, China
Brand Muzhishi
Customization Logo, colors, sizes, packaging available

Key Product Properties

The bottle body is made from Type II or Type III glass, which is chemically neutral and resistant to ethanol-based degradation, keeping fragrance composition stable from filling to the final spray.

The cylindrical shape provides a stable center of gravity and even wall distribution, which simplifies filling, capping, and shipping without compromising structural integrity.

The ball cap is weighted with a PP or metal inner core, giving the closure a solid hand-feel that is noticeable on first contact.

Neck finishes are held to a ±0.1mm tolerance for FEA 13, 15, or 18mm configurations, ensuring consistent pump compatibility across a production run.

If your sourcing criteria depend on verified dimensional consistency, the specification table above covers the key parameters to evaluate.

Customization Options

This bottle can be configured across several dimensions to match a brand's visual identity and functional requirements.

· Decoration: Hot stamping, frosting, inside engraving, screen printing, vacuum ionization plating

· Colors: Transparent as standard, or custom tinted glass

· Sizes: 30ml, 50ml, 100ml, or custom dimensions

· Pump Type: GCMI screw threads for refillable lines or FEA crimp necks for tamper-evident retail packaging

· Closure: UV-stabilized resin ball cap or glass-ball variant to prevent yellowing over a 24-month shelf life

· Packaging: Custom packing box, sticker, or label per your requirements

· Logo: Printed, engraved, or applied via sticker

Contact our team to discuss which configuration fits your product line.

Quality Assurance

Production Process

Step 1 — Design Confirmation

Your brief is reviewed by the design team. 3D printing is available for complex structural requests. Sample prototypes are ready within 3 to 5 days.

Step 2 — Raw Material Preparation

Type II or Type III glass cullet is sourced from verified local suppliers. Batch composition is checked for boron content and chemical neutrality before entering the furnace.

Step 3 — Glass Forming

Molten glass is shaped in automated molds at controlled temperatures. Wall thickness is held to a minimum of 1.5mm, and neck dimensions are maintained at ±0.1mm tolerance.

Step 4 — Annealing & Cooling

Formed bottles pass through a lehr oven for controlled cooling to relieve internal stress and prevent micro-cracks that could fail under pump pressure.

Step 5 — Surface Treatment

Decoration is applied at this stage, including acid frosting, silk screen printing, hot stamping, or vacuum ionization plating, depending on specification.

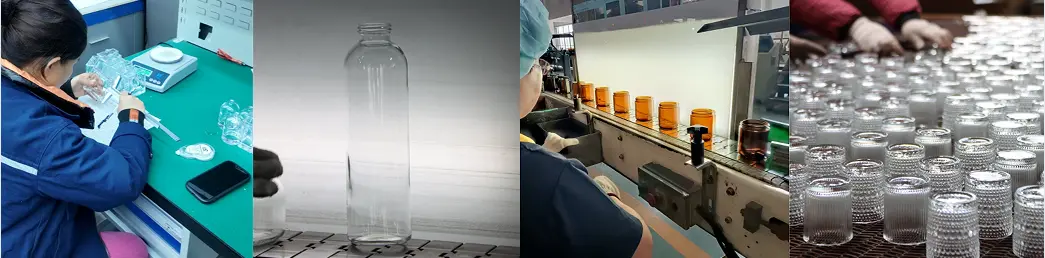

Step 6 — Quality Inspection

AOI scanning checks for inclusions, mold seams, and dimensional deviations. Vacuum leakage and load strength tests are carried out on sampled units from each batch.

Step 7 — Assembly & Packaging

Pumps, dip tubes, and ball caps are assembled and secured. Products are packed per customer requirements and prepared for export with full documentation.

Customization

Manufacturing & Quality Assurance

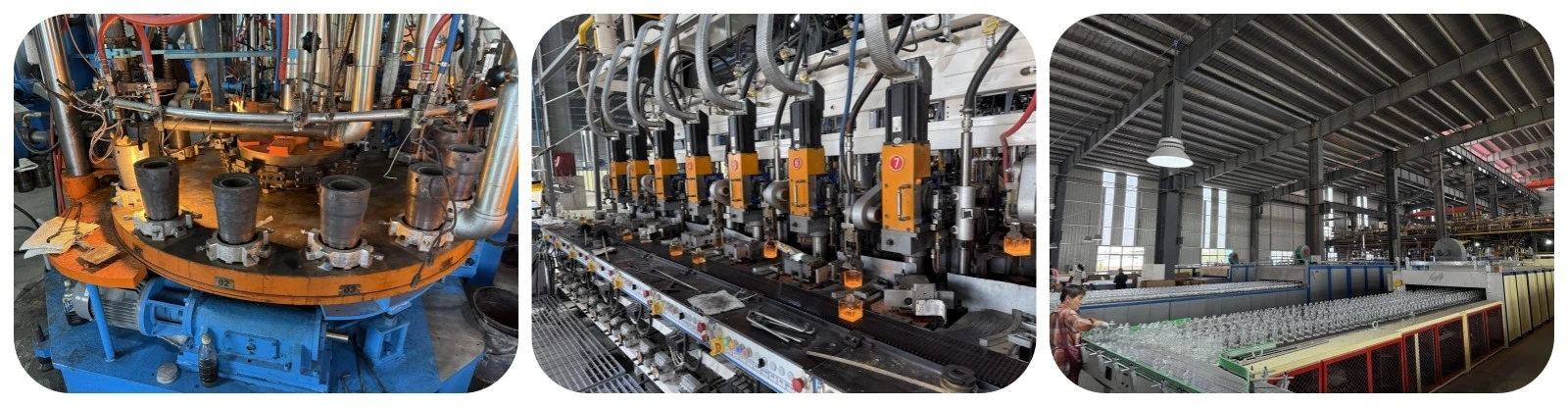

Muzhishi operates 10 glass furnaces, each with a capacity of 150 tons, and 6 automated production lines for Cylinder Empty Perfume Spray Bottle With Ball Shape Cap Lid. Raw material costs are maintained 10% to 15% below market average through long-term supplier partnerships.

Every production batch of this bottle goes through four structured quality checks:

· Vacuum Leakage Test: No leakage at -0.08MPa held for 10 minutes, confirming safe air transport

· Vertical Load Strength: Cylinder body tested to over 20kgf downward pressure

· Compatibility Testing: 45-day accelerated aging at 40°C to confirm cap gaskets and pump seals do not react with fragrance oils

· Automated Optical Inspection (AOI): Detects stones, seeds, or mold seams in the glass before shipment

Products carry CE, FDA, SGS, and LFGB certifications.

Integrated Industry and Trade

FAQ

Q: Does the ball cap stay in place while being shipped by foreign air?

A: The cap has a click-lock inner lining or a friction-fit tensioner that meets IATA standards for vibration resistance. This keeps the seals safe while they're being shipped.

Q: Is there a choice between screw-on and crimp-on pumps?

A: Yes. There are GCMI screw threads for refillable product lines and FEA crimp necks for retail uses that need to be sure that the product has not been tampered with. This bottle works with both choices.

Q: How can I keep the clear ball cap from turning yellow over time?

A: The closure is made of UV-stabilized resins or glass-ball versions of them, which keep the clearness of the vision for at least 24 months when stored normally.

Q: What is the thinnest part of the cylinder's walls that can be?

A: The standard minimum is 1.5 mm, which makes the bottle strong against impact while making it light.

Q: Can I see the pump dip tube inside the bottle?

A: There is an option for an invisible dip tube that uses matching of the refractive indices, so the internal system doesn't change how the bottle looks.

Q: What kinds of surface processes are there for customising brands?

A: Hot stamping, acid frosting, inside engraving, screen printing, vacuum ionisation plating, sticker labels and custom packing boxes are all options that can be used for both OEM and ODM orders.
