Glass Roll On Bottles For Essential Oils are a main packaging format utilised by aromatherapy brands, cosmetic labels and topical medicinal producers. Xuzhou Muzhishi Crafts Co., Ltd. has been engaged in glass packaging production since 2005 and has 10 glass kilns with a daily output of 1 million pieces. Bottles come in amber or clear glass and are available in 5ml, 10ml and 15ml sizes. Roller ball options include stainless steel, glass or plastic. We offer full surface decoration and private label customisation.
The design of the roll-on container can have a direct effect on the performance of an oil solution over the shelf life. A typical unit of the Muzhishi is composed of a body of borosilicate glass, a spherical roller ball and a leak-proof closing, which is produced by a tension-fit housing of PE.
The amber glass prevents UV wavelengths from 200 nm to 400 nm. For photosensitive oils like bergamot or citrus-based blends, this protection can significantly decrease oxidation and extend the useable shelf life. Clear glass is offered for recipes where the colour is a selling point.
The roller ball applicator dispenses the oil in a regulated, controlled pass rather than a drop or spray. This saves waste in application and removes the potential of spillage, as with open-orifice dropper bottles – a practical benefit when applying to pulse points in retail and clinical environments.

Step 1 – Selection of Raw Material
Raw materials for borosilicate glass are supplied from recognised local suppliers. Before any production run, the uniformity of incoming material is checked.
Step 2 – Forming the Glass
Molten glass is formed on automated production lines . The wall thickness and the neck size are kept within the limits determined in the design of the product.
Step 3 – Annealing
Bottles are passed through a controlled cooling tunnel. This is a polarised light stress test . It is to make sure there are no internal stresses left that may cause cracking under impact or pressure during filling or transit .
Step 4 – Surface Treatment and Decoration
Options include hot stamping, screen printing, interior engraving, and label or sticker application. At this point the customer supplied artwork is finished with custom colours and brand positioning.
Step 5 – Rollerball & Cap Assembly
The PE housing has stainless steel, glass or plastic roller balls. The type of caps, i.e. wooden, metal or plastic will be according to the order specification.
Step 6 – Quality Inspection
Each batch is subjected to the aforesaid processes to assess vacuum integrity, wall uniformity, compression strength and hydrolytic resistance.
Step 7 – Packaging and Shipment
Finished items are bundled as per customer demand. Please find attached the normal export papers i.e. business invoice, packing list and certificate of origin.

| Feature | Options |
|---|---|
| Material | Glass (body, base, collar) |
| Capacity | 5ml, 10ml, 15ml, or customized |
| Color | Amber, Transparent, Customized |
| Ball Type | Glass, Steel Balls, Plastic |
| Cap Material | Wooden, Metal, Plastic |
| Cap Color | Gold, Silver, White, Black, etc. |
| Surface Handling | Hot Stamping, Screen Printing, Inside Engraving, Heat Transfer, Spraying |
| Closure Type | Screw Cap |
| Sealing Type | Roll On |
| Shape | Round |
| Customization | Logo, Sizes, Colors, Labels, Packaging |
| Model Number | CP-R-001-1, CP-R-005 |
| Origin | Jiangsu, China |
Aromatherapy Companies
Spill-proof, precise application is important for Glass Roll On Bottles For Essential Oils marketed as therapeutic. The sealed fitting mechanism traps the formula throughout usage and transit, important for professional and clinical product lines.
Cosmetic and Perfume Stickers
The smooth 360-degree roller action enhances oil-based scents and serums that are applied to skin. The touch and feel is very different from a spray nozzle and fits with premium product marketing.
Topical Pharmaceuticals OTC
Containers for topical analgesic mixtures containing menthol or methyl salicylate should be resistant to chemical stress cracking. Borosilicate glass can withstand these substances throughout the product life cycle without degradation – a proven drawback of many plastic substitutes.
Existing Distributors & Private Label Startups
Standard off the shelf combinations are normally available within 3 to 5 days. Custom samples need 25 days. Sample approved, mass production will be in 30 days or so. If you want to test a certain configuration before ordering in bulk, it’s easy to start that process – email us at long@muzhishi.com.

The roller neck interface is constructed to +/- 0.05 mm tolerances. This keeps the ball to fitting gap within the 0.1mm-0.2mm range needed to ensure constant fluid flow for varying oil viscosities. If the gap is too tight, thick oils will not pour, if it is too loose, thin oils will drop.
The roller balls are constructed of stainless steel 304 or 316 grade. Both grades are inert to terpenes and resistant to corrosion from citrus based oils. The cool-to-touch property is one of the sensory features that certain businesses leverage to reinforce their premium status.
The PE snap-fit housing ensures container-closure integrity with changes in air pressure. This applies to products carried via air freight when pressure variations in the cargo holds might create leaks in inadequately sealed containers.

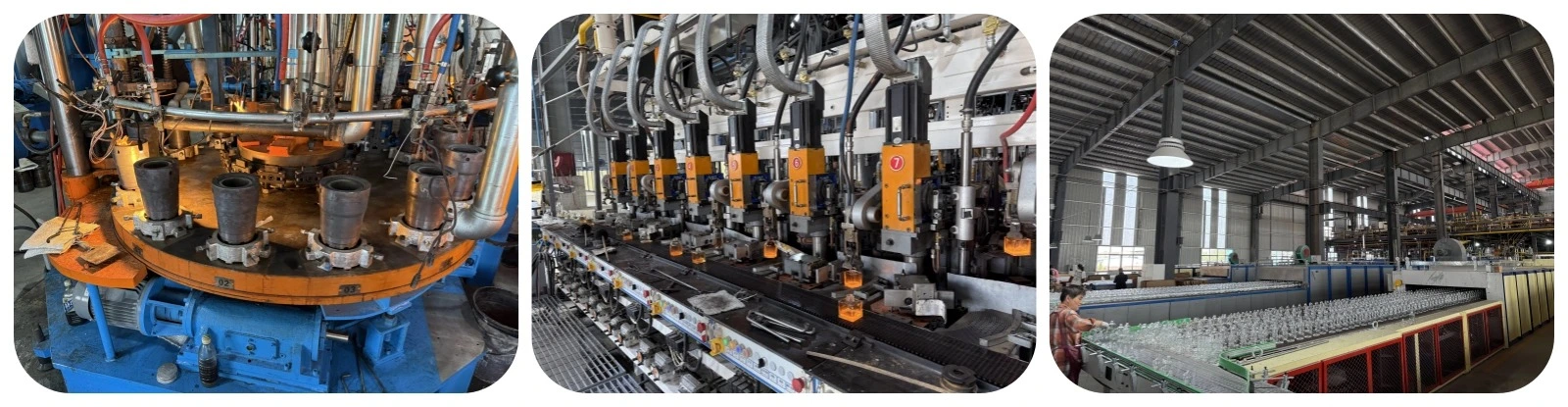

Muzhishi has 10 glass furnaces with a 150-ton capacity and 6 automated production lines. Such infrastructure ensures uniform batch quality in small and high volume production.

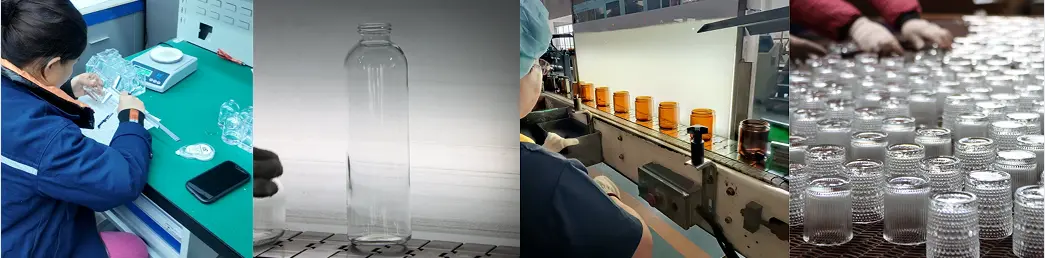

Before shipment, a structured inspection process is performed for each production batch of glass roll-on bottles:
· Vacuum Leak Testing (ASTM D4991): Simulates air transport pressure of 0.5 Bar to ensure no leakage under conditions representative of international cargo shipping.
· Uniformity of Wall Thickness: Measured by ultrasonic gauge to prevent breakage during automated filling processes.
· Compression Force Testing: Verifies that the roller fitting will not come loose during typical use.
· Internal Hydrolytic Resistance (ISO 4802-1): Tests if glass leaches alkali into the oil, maintaining formula pH stability.
The products meet CE, FDA, SGS and LFGB requirements.

Q: The roller ball is not dispensing oil. It could be clogged.
A: Usually this is the case when high-viscosity oils are used or crystallisation occurs inside the fitting. A ball-to-fitment gap of 0.1mm-0.2mm is recommended to ensure reliable fluid flow. Check with your supplier the gap specification before placing your order.
Q: Do these bottles leak during air shipment?
A: Bottles which pass the 0.5 Bar vacuum leak test in QC are constructed to withstand the pressure variations which are typical in air cargo holds. The PE fitting under these conditions serves as a gasket.
Q: Is the roller ball better in stainless steel than plastic?
A: For most uses of essential oils, stainless steel is more durable. It is inert to terpenes, resistant to corrosion by citrus based oils and has a different sensory characteristic to plastic. Plastic balls are still an alternative in cost-sensitive designs.
Q: What can I do to prevent damage during transit?
A: This danger can be mitigated by specifying bottles that have been annealed and passed the polarised light stress test. The test demonstrates the absence of internal tensions that could lead to shattering during transit impact.
Q: Is there a customisation possibility for private label orders?
A: You can choose the bottle size (5ml, 10ml, 15ml), glass colour, roller ball material, cap material and colour, surface decoration, such as hot stamping, screen printing, engraving and customised labels or packing boxes.
Send your Glass Roll On Bottles For Essential Oils inquiry or sample request to long@muzhishi.com. Include your target size, quantity, and any decoration requirements for a faster response.
Our customers’ satisfaction speaks for our quality — contact us to experience the same reliable service.
