Vertical Striped Glass Candle Jars

Material: Glass
Capacity: 250ml Color: Transparent,Customized
Usage: Home Decoration,Wedding,Party,Festival
Customization capability: Hot Stamping, Frosting,Inside Engraving, Clear, SCREEN PRINTING, Sizes, Colors, Bottle Types, Logo, Sticker or Label, Packing Box, etc
Packaging: As per customer requirements
Transportation method: As per customer requirements Sample:Provided Freely
Product Description

Vertical Striped Glass Candle Jars — Ribbed Glass Containers with Full Customization

Vertical Striped Glass Candle Jars are perfectly formed containers with linear ridges on the outside surface that are spaced at regular intervals. For candle brands, these ridges are functional: they break up the glare of the flame for a deeper ambient effect, they hide wax shrinkage and frosting typical in soy wax compositions, and they allow for a better grip in retail packaging. These jars are available in soda lime silica or high borosilicate glass. These jars are available in wall thickness of 3 mm to 5 mm with standard volume of 250 ml. They may be used to make high performance candles as well as ornamental usage.

Vertical Striped Glass Candle Jars

Vertical Striped Glass Candle Jars

Vertical Striped Glass Candle Jars

Vertical Striped Glass Candle Jars

Vertical Striped Glass Candle Jars

Vertical Striped Glass Candle Jars

Who We Serve

These ribbed candle containers are targeted for B2B buyers across several segments.

Candle brands and manufacturers can profit from the vertical ribbed construction when using fragrance oil loading of 10-12%. It allows for faster heat dissipation along the external surface compared to smooth glass of the same weight.

Luxury Hospitality and Retail buyers use fluted glass jars in hotels, spas and boutique settings. The ridges interact with ambient lighting in a prismatic way that creates a visual quality plain glass doesn't reproduce.

Buyers of gift and seasonal products, sourcing for weddings, holiday collections or promotional sets, like the decorative endurance of ribbed glass. When the candle is burnt out, consumers often repurpose the jars as vanity organisers or storage containers, extending the brand’s presence in the home.

Full design to delivery support is available for Private Label and ODM Buyers including logo application and bespoke packaging with 3D printing prototyping for complicated designs before tooling.

Vertical Striped Glass Candle Jars-Company Photos

Vertical Striped Glass Candle Jars Specifications

Feature Details
Material High-borosilicate glass, Food-grade
Capacity 250ml
Shape Cylinder with vertical ribbed texture
Dimensions Height: 8.4cm, Diameter: 8.5cm, Mouth: 6.6cm
Weight 422.8g
Color Options Transparent, Custom colors available
Model Numbers CS-P-007, CS-P-007-004
Wall Thickness 3-5mm for optimal heat distribution
Thermal Resistance Withstands temperature changes up to 60°C

Vertical Striped Glass Candle Jars-Integrated Industry and Trade

Key Product Features

The ribbed architecture of these Vertical Striped Glass Candle Jars provides structural as well as aesthetic value. Each vertical rib functions like a reinforcing column, enhancing the ability to carry a vertical load and to resist impact compared to flat glass of the same weight.

Annealed and fire-polished rim finishing eliminates internal stress areas that might cause breaking under repeated heat exposure. This leads to a more uniform product from batch to batch.

The outer ribbing is not continued on the inside wall which is left smooth. The smooth interior encourages steady wick burning and uniform heat distribution from top to bottom, which means less risk of tunnelling when combined with the right wick size.

The greater surface area on the outside increases upward convection of heat along the glass walls which assists in preserving stable temperatures during the burn for fragrance oil loads in the 10 to 12 percent range.

​​​​​​​​​​​​​​Production Process

Step 1 — Choosing Raw Materials

The choice of soda-lime-silica or high-borosilicate glass batch materials is determined by the thermal resistance requirements of the order.

Step 2 — Melting

High capacity furnaces are fed with raw ingredients and melted at controlled temperatures to provide homogenous molten glass.

Step 3 — Moulded with Precision

Molten glass is pushed or blown into fluted moulds. The vertical arrangement of stripes, the depth of the ridges and the wall thickness (between 3 mm and 5 mm) are determined by the mould design.

Step 4 — Annealing

Annealing lehr is used to cool jars in a regulated manner to relieve interior stress. This is necessary for thermal shock resistance and long term durability.

Step 5 — Fire-Polishing the Rim

The rim of each jar is fire-polished to remove sharp edges, and to form a smooth, even lip.

Step 6 — Inspection of Quality

Each jar is tested for wall thickness consistency, surface flaws, dimensional accuracy and rim quality before being packed.

Step 7 — Customising and Packaging

Once approved, jars travel to finishing for logo printing, icing, hot stamping, screen printing or labelling and are packed per customer requirements.

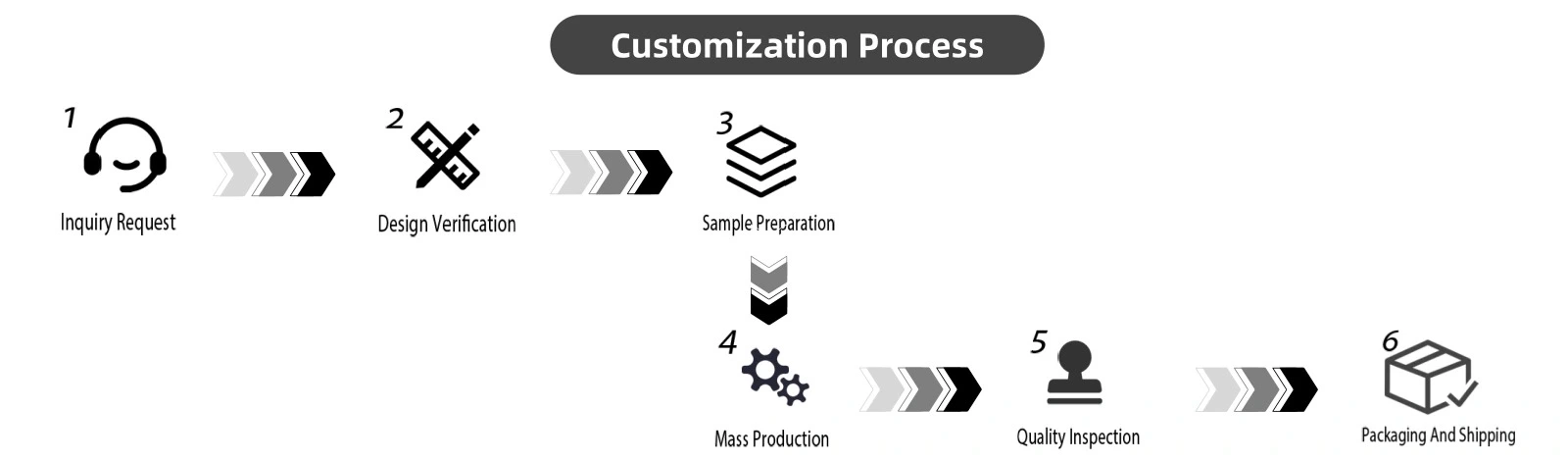

Vertical Striped Glass Candle Jars-Customization

Manufacturing and Quality

Xuzhou Muzhishi Crafts Co., Ltd. has manufactured glass items since 2005. The facility has 10 glass furnaces and 6 automated production lines.

Each batch is tested to CE, FDA, SGS and LFGB certification criteria for food grade compliance, thermal safety and chemical resistance. The certifications provide documentation for retail and hospitality buyers in international markets.

Free samples available. Mass production is done after sample approval in about 30 days.

Vertical Striped Glass Candle Jars-Certifications

Customization Options

These containers can be customized across a range of attributes:

· Surface finish: Frosting, hot stamping, screen printing, inside engraving, clear

· Logo application: Direct printing or sticker/label

· Colors: Transparent or custom-tinted

· Sizes and bottle types: Adjusted to your product line

· Packaging: Custom packing box options available

Sample lead time is 3–5 days. Complex designs are supported with 3D printing prototyping before tooling begins.

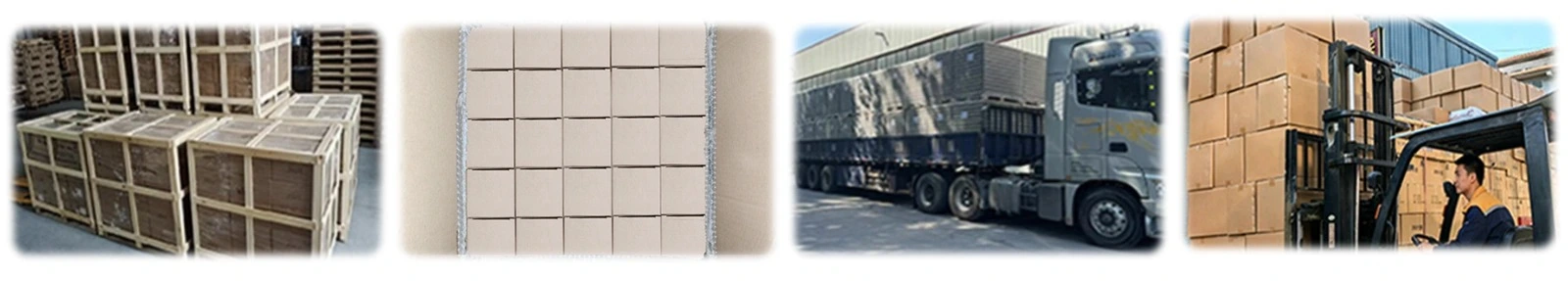

Vertical Striped Glass Candle Jars-Packaging Workshop

FAQ

Q: Does the label stay on with the vertical stripes?

A: A flat label with a standard adhesive may not adhere reliably to a ribbed surface. High-tack adhesives or tactile screen printing right into the ridges are more consistent for a clean finish.

Q: Will these jars work with Paraffin and Soy Wax?

A: Yes. The vertical texture is particularly good at hiding the frosting that occurs in 100% soy wax formulations, making the completed product look clean on the shelf.

Q: Is the texture inside or outside of the jar?

A: The ribbing is just on the outside surface. The internal wall is still smooth so it can handle even wick burning and even heat transfer.

Q: Do the ridges produce uneven heating during burning?

A: Not at all. Its vertical profile facilitates the circulation of heat up the glass walls. When combined with the proper wick size this allows for a more equal burn profile and can help reduce tunnelling.

Q: What certifications do these jars have?

A: These glass candle jars are tested and certified to CE, FDA, SGS, LFGB, etc. standards, such as food grade, thermal safety for the worldwide markets.

Q: Do you provide free samples?

A: Yes. Free samples available with lead time of 3-5 days. 3D Printing prototyping is available for complex or custom designs prior to tooling.

Vertical Striped Glass Candle Jars-Quality Assurance

Contact Us

To request a free sample or discuss your Vertical Striped Glass Candle Jars order, email long@muzhishi.com. Our team will follow up promptly.
