300ml Wine Glass Bottle With Drawing

Material: Glass
Capacity :300ml
Color: Transparent,Customized
Usage: Wine ,Vodka, Braueur ,Whisky ,Tequila ,Gin, Rum Liq
Customization capability: Hot Stamping, Inside Engraving, Clear, SCREEN PRINTING, Sizes, Colors, Bottle Types, Logo, Sticker or Label, Packing Box, etc
Packaging: As per customer requirements
Transportation method: As per customer requirements Sample:Provided Freely
Product Description

300ml Wine Glass Bottle With Drawing for Beverage Packaging

The measurements of your filling line, capping system and shelf format need to be accurate. Only a 300ml Wine Glass Bottle With Drawing is a sure starting point. Every unit created from an engineering drawing has specified neck finish dimensions, body tolerances and fill-point depth, unlike off-the-shelf stock bottles, and these are the characteristics that will determine whether your manufacturing run is a success or a stall. Muzhishi has been manufacturing glass packaging solutions since 2005 to satisfy the needs of B2B buyers who require dimensional accuracy, consistent quality and custom production at scale.

300ml Wine Glass Bottle With Drawing-Company Photos

What "With Drawing" Means in Glass Packaging

In the manufacture of glass bottles "with drawing" means that the bottle is made from an approved technical print instead of a standard mould. Neck finish dimensions (numbers for T, E, B and I), body outer diameter, fill point depth, base geometry and verticality tolerance are specified by the drawing. These specs tell you whether a bottle will work with an automated filling head, accept a certain closure, or pass your quality inspection when it arrives.

Buyers that skip the design stage may have neck finish incompatibilities with capping equipment, volume discrepancies from batch to batch or wall thickness fluctuation that causes breaking during cold-chain transit. A proven sketch removes those failure points prior to production.

300ml Wine Glass Bottle With Drawing

300ml Wine Glass Bottle With Drawing

300ml Wine Glass Bottle With Drawing

300ml Wine Glass Bottle With Drawing Specifications

Parameter Details
Material High-quality glass
Capacity 300ml
Height 27.7cm
Diameter 7.3cm
Weight 509.5g
Model Number FP-W-027
Brand Name Muzhishi
Sealing Type Screw Cap
Cap Material Aluminium
Colors Transparent, Customized options
Place of Origin Jiangsu, China
Base Material Glass
Body Material Glass
Collar Material Glass

300ml Wine Glass Bottle With Drawing-Complete Set of Manufacturing Assembly Lines

Who This Product Is Built For

This is not a standard bottle from existing stock; this is a product for B2B buyers who require dimensional control.

Ice Wine Producers and Boutique Wine Producers

The 300ml format is common for luxury single-serve and gift-set applications. The engineering drawing controls wall thickness and base reinforcement geometry which is important when bottles are filled in vacuum conditions or handled by automated bottling equipment.

Airlines & Hospitality Buyers

Compact 300ml bottles for minibar forms, galley carts and hotel amenity programs The technical drawing guarantees the neck finish is compatible with your corking or capping equipment decreasing rejects during large volume runs.

Handcrafted Spirits & Speciality Beverage Brands

Are there embossed logos, textured surface panels or non-standard structural shapes in your product? Your drawing will clarify embossment depth, label panel curvature and surface friction requirements, all of which impact labelling productivity on automated lines.

Production Process

Drawing Confirmation — Technical requirements are translated into a CAD engineering drawing specifying all neck finish dimensions (T, E, B, I values) and structural tolerances.

Mold Creation — A production mold is made from the approved drawing. Lead time for complex custom designs is approximately 15 days.

Glass Forming — Raw glass is melted and formed on automated lines.

Annealing — Formed bottles pass through a controlled cooling tunnel to relieve internal stress.

Quality Inspection — Each batch is tested for dimensional accuracy, annealing quality, pressure resistance, and surface condition.

Decoration and Packaging — Screen printing, hot stamping, or engraving is applied. Bottles are packed per your confirmed specifications.

Shipment — Sea, air, or multimodal transport arranged with full documentation: commercial invoice, packing list, and certificate of origin.

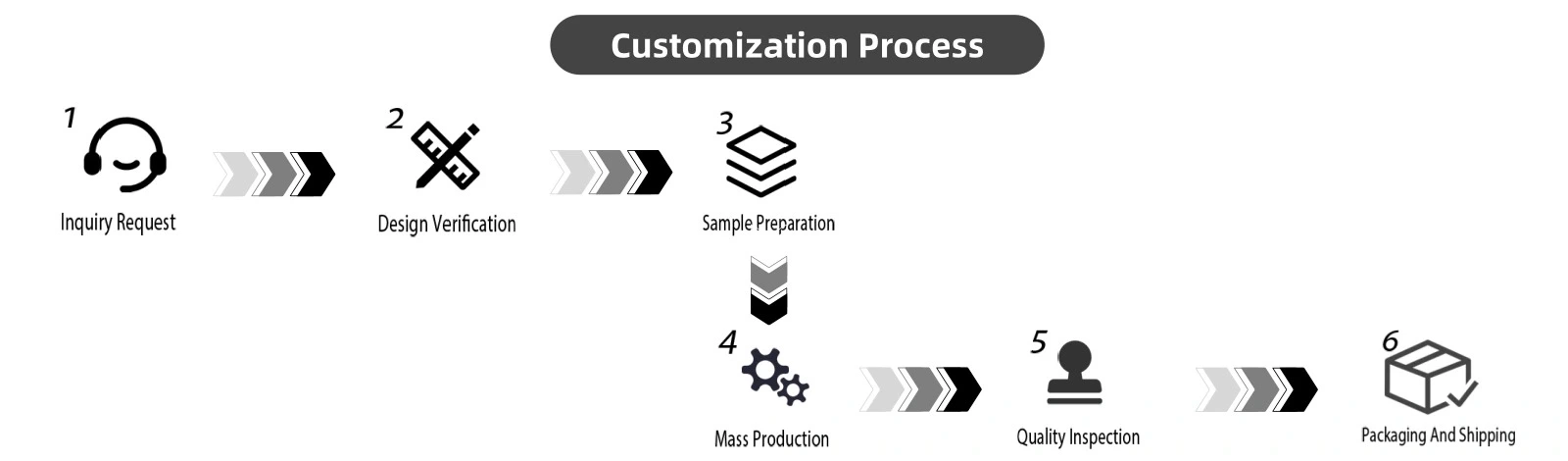

300ml Wine Glass Bottle With Drawing-Customization

Customization Options

The customisation of the 300ml Wine Glass Bottle With Drawing is done through the process of engineering drawing. The dimensions and design aspects are agreed in writing before the mould is created.

· Surface decoration: Hot stamping, screen printing, interior engraving, sticky label

· Structural design: bottle shape, base geometry, kind of neck finish, embossed patterns

· Colour and dimensions: Transparent standard or special colour; special dimensions as per drawing

· Packing: According to your specifications: custom carton, inner dividers, gift packing

· Logo application: Directly on glass surface or via label panel

All requests for customisation begin with a drawing evaluation. The dimensions are checked before any work is done on the mould.

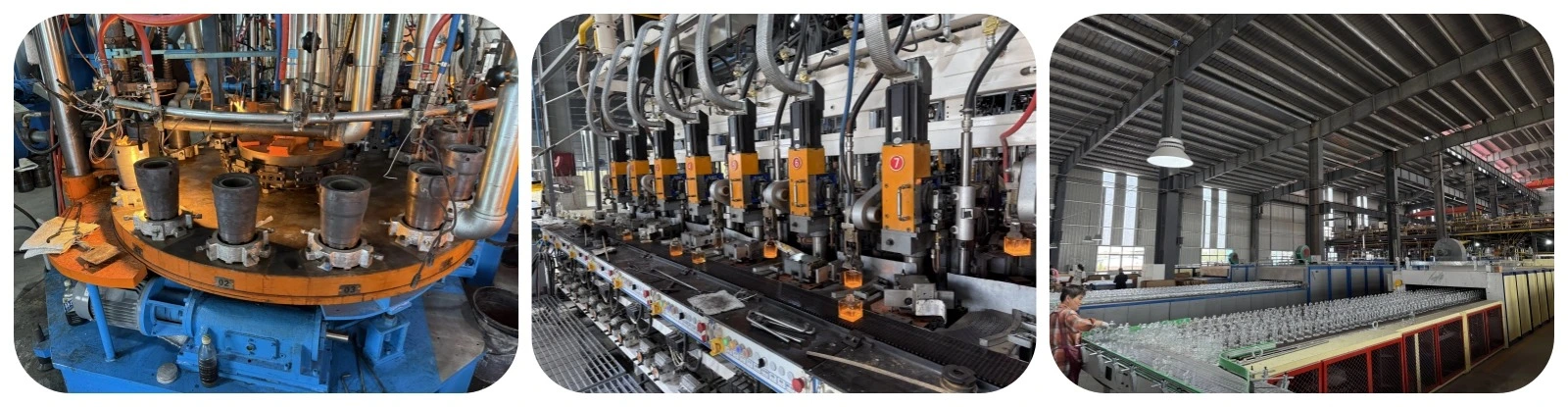

300ml Wine Glass Bottle With Drawing-Product Manufacturing

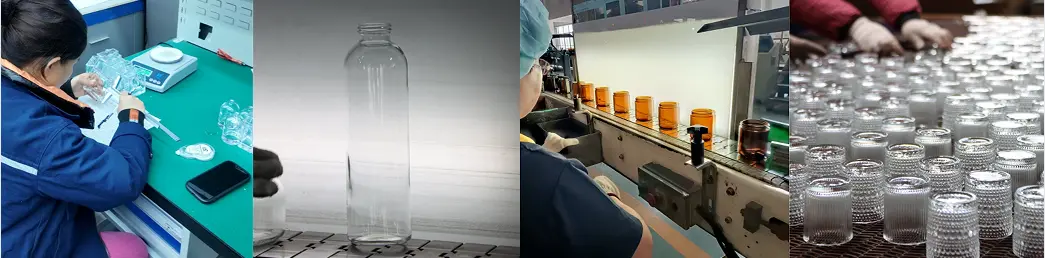

Manufacturing and Quality Inspection

Bottles are checked at several locations prior to shipping.

Dimensional Conformance

Neck inner diameter, body outer diameter and fill-point depth are checked against the approved drawing with digital callipers and go/no-go gauges.

Annealing Verification

Polariscopic testing has shown that residual stress levels are maintained within Grade 2 on the ASTM C148 scale, minimising the potential for stress fractures during filling or transit.

Hydrostatic Pressure Testing

Destructive testing confirms that the bottles satisfy the internal pressure resistance criterion of ≥ 1.2 MPa for applications involving carbonated and fermented liquids.

Surface Treatment Inspection

The coefficient of friction for bottles intended for automatic labelling lines is tested. Where UV-sensitive substances require particular surface treatment, the coating thickness is measured.

300ml Wine Glass Bottle With Drawing-Certifications

FAQ

Q: What engineering drawing would be needed for a 300ml wine glass bottle?

A: The drawing confirms that your bottle neck finish measurements are compatible with your filling machine centring bells and capping heads. Without validated dimensions, discrepancy in neck finish might lead to line delay and rejected batches.

Q: Are these safe for pasteurisation?

A: If the technical drawing specifies the correct thermal expansion coefficient and wall thickness for your application, the bottle is designed to handle the temperature delta during standard pasteurisation cycles. Check your pasteurisation parameters during the drafting stage.

Q: How long does it take to make a custom bottle?

A: The drawing review and mould making takes around 15 days. After sample clearance we will do mass production. Usually 20-30 days depends on order quantity and decoration required.

Q: How is the volume accuracy of 300ml maintained?

A: The overflow capacity is checked for each production mould. The depth of fill point is specified in the engineering drawing, the volume tolerance is within ±2%.

Q: Are the bottles compatible with both screw caps and natural corks?

A: Yes. In the engineering drawing, before making the moulds, you specify and choose the neck finish type (threaded or cork-mouth) according on your closure system.

Q: Do you offer samples before bulk orders?

A: Yes. Samples are free. Lead time is 3 – 5 days for existing designs or about 25 days for a fully new product order.

Q: What do I need to have ready before I call you?

A: The starting points that are most useful are your fill volume, your closure type (screw cap or cork), any decorating needs and your projected annual volume. If you have an existing bottle drawing or sample reference, please submit that as well.

300ml Wine Glass Bottle With Drawing-Packaging Workshop

Contact Us

Send your 300ml Wine Glass Bottle With Drawing requirements to long@muzhishi.com. Include your closure type, fill volume, and decoration needs to receive an accurate sample quote.
