Xuzhou Muzhishi Crafts Co., Ltd. has been producing glass containers since 2005, supplying buyers in food manufacturing, retail, and specialty markets. Our Multi-Size Wide Mouth Glass Mason Jar with Metal Lids comes in 125ml, 500ml, and 800ml capacities, each with an 86mm wide-mouth opening and food-grade metal lids fitted with plastisol liners. Made from soda-lime glass, these jars meet CE, FDA, SGS, and LFGB standards and support OEM and ODM orders with free samples available for evaluation.



| Feature | Details |
|---|---|
| Material | Food-grade lead-free glass |
| Available Capacities | 125ml, 500ml, 800ml |
| Jar Height | 4.9cm, 9.1cm, 16.6cm |
| Jar Diameter | 9.5cm, 9.3cm, 9.2cm |
| Jar Weight | 186.1g, 237.6g, 389.9g |
| Shape | Cylindrical |
| Lid Type | Metal screw cap (aluminum/twist lid options) |
| Color Options | Clear transparent, customizable |
| Sealing Type | Screw cap with airtight seal |
| Model Numbers | FP-M-001, FP-M-002, FP-M-003 |
| Brand | Muzhishi |
| Certifications | CE, FDA, SGS, LFGB |

The key characteristic of its design is the 86mm large mouth hole. It facilitates filling of thick products such as jams, nut butters and fermented vegetables and allows mechanical cleaning to be viable for industrial kitchens and food processors.
For B2B buyers, the same lid size for all three capacities means that one lid specification will cover your whole product range. This reduces the complexity of inventory and simplifies automated capping on production lines.
The metal lids feature a food-grade plastisol liner of BPA-NI (BPA not intentionally introduced). Once sealed and cooled, the central disc is pulled concave, establishing a vacuum seal – critical for shelf life and transport integrity.

Food manufacturers, canners use these jars for high-acid items such as pickles, sauces and fermented goods. The broad opening allows heat to penetrate rapidly during pasteurisation. The hermetic metal lid helps to avoid spoiling.
The multi-size range allows retailers and zero-waste companies to create standard displays for dry items on the shelf, such as coffee beans, almonds, spices and sugar. No need for supplementary packing for moisture and insect resistance for glass.
Speciality and pharmacy firms store compound powders or biological samples when chemical inertness is needed. Wide opening for tool access; metal lid to minimise vapour leakage.
Gift and lifestyle businesses profit from our customisation options: screen printing, embossed logos, laser engraving, custom lid colours in silver, gold or black and full gift box packaging.

Step 1 — Raw Material Preparation
Soda-lime glass batch materials are weighed and mixed. Lid materials — tinplate or stainless steel — are inspected for food-grade compliance before entering production.
Step 2 — Glass Melting and Forming
Raw materials are fed into our glass furnaces. Molten glass is shaped through automated forming lines.
Step 3 — Annealing
Formed jars move through an annealing lehr at approximately 540°C. This relieves internal stress and stabilizes the glass structure.
Step 4 — Dimensional and Visual Inspection
Each jar is checked for the 86mm mouth diameter, ±0.5mm thickness tolerance, and surface defects. Rejected pieces are removed before further processing.
Step 5 — Lid Stamping and Lining
Metal lids are stamped to size and fitted with the food-grade plastisol liner. Lid thread dimensions are gauged against the jar's T and E specifications.
Step 6 — Quality Testing
Batches go through thermal shock, vacuum retentivity, vertical load, and salt spray tests as described above. Only passing units proceed to packaging.
Step 7 — Customization and Packaging

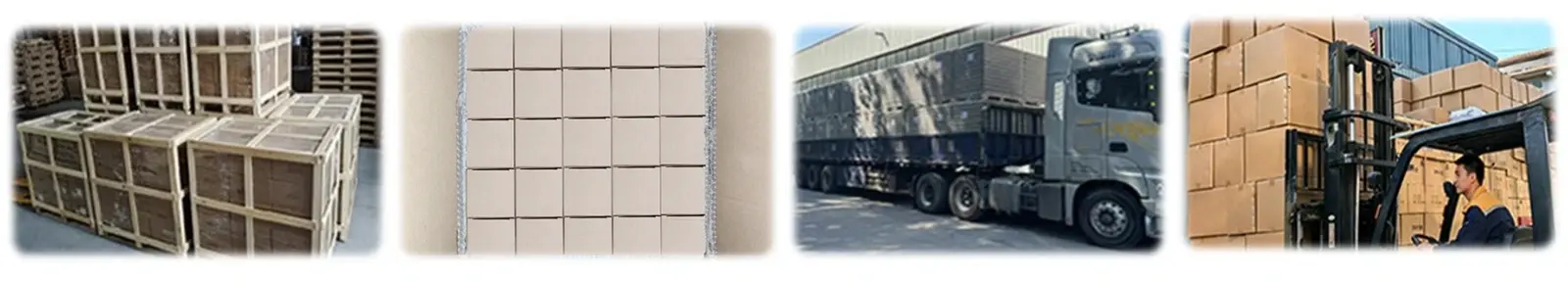

Approved jars receive any ordered customization — screen printing, laser engraving, or embossing. Units are packed in bulk cartons or custom gift boxes with foam inserts per customer requirements.
Step 8 — Export and Shipping
We handle shipping documentation including commercial invoice, packing list, and certificate of origin. Sea, air, and multimodal transport options are available.

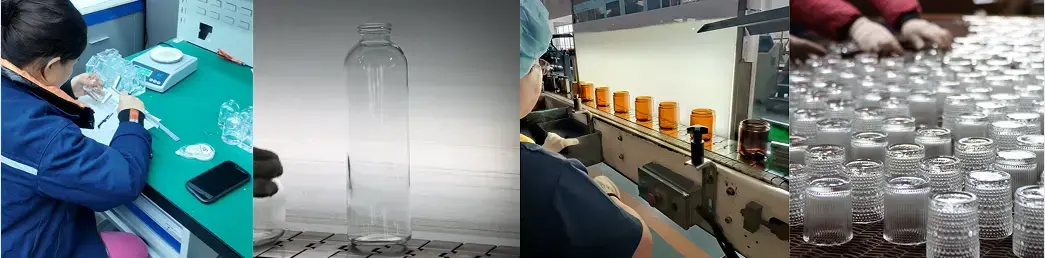

Each batch of Multi-Size Wide Mouth Glass Mason Jar with Metal Lids goes through five standard quality checks before shipment:
· Thermal Shock Testing (ASTM C149): confirms the glass handles rapid temperature changes during pasteurization
· Vertical Load Strength Test: verifies safe stacking during logistics
· Vacuum Retentivity Testing: checks the plastisol liner under negative pressure
· Dimensional Precision Gauging: measures T and E thread dimensions to prevent lid stripping or leakage
· Salt Spray Testing: evaluates corrosion resistance of metal lids in high-humidity storage environments
Our products comply with CE, FDA, SGS, and LFGB food-grade standards. Free samples are available; buyers cover shipping costs only.

Q: Are these jars safe for pressure canning?
A: Yes. Soda-Lime Glass is Safe for Pressure Canning Pre-heat the jars beforehand to stay within the thermal shock limit of 42°C.
Q: Can I reuse the metal lids?
A: You can reuse the outside screw band. The center disc with the plastisol liner is designed for a single vacuum seal to ensure food safety. The glass jar is re-usable.
Q: Do these jars contain BPA?
A: Glass is BPA-free by nature. The metal lid liners are formulated with BPA-NI, so BPA is not purposefully added to the sealing compound.
Q: How can I determine if the jar is sealed correctly?
A: Once the jar is cool, press the middle of the metal lid. The middle of a sealed jar will be a hard concave that does not move. If there is movement or a popping sound, the seal did not form.
Q: Are there any customisation possibilities for B2B orders?
A: Screen printing, logos embossed, laser engraving, bespoke capacity sizes, coloured glass, lid colours in silver, gold or black, sticker or label printing, gift box packaging, custom measurement scales engraved on the glass.
Q: What are sample and order terms?
A: Free samples for evaluation, buyer pay freight. Custom manufacture is roughly 25 days. Production will commence 30 days after acceptance of the sample. Contact us to discuss order quantities and customisation options to meet your individual needs.

For sourcing inquiries, samples, or pricing on our Multi-Size Wide Mouth Glass Mason Jar with Metal Lids, reach our team at long@muzhishi.com.
