Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern

Material: Glass
Capacity: 300ml,500ml,800ml
Color: Clear transparent glass, Customizable
Usage: Canning & preserving (jams, pickles, sauces), food storage (honey, nuts, cereal, coffee beans, spices, sugar, salt), beverage container (cold brew coffee, infused water, iced tea), DIY crafts (candle holders, terrariums, gift packaging), portioned yogurt, homemade fruit tea, fruit wine infusion
Customization capability: Screen printing, embossed logo, laser engraving, custom capacity sizes, colored glass, custom metal lid colors (silver, gold, black), sticker/label printing, gift box packaging, custom measurement scales
Packaging: Bulk carton packaging, custom gift box packaging, foam insert protection (as per customer requirements)
Transportation method: Sea freight, air freight, express delivery (as per customer requirements)
Sample: Free samples provided (customer covers shipping cost)
Product Description

Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern

The Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern brings together the look of handmade tradition with food-safe functionality. These jars are made from high clarity, food quality soda lime glass that is 100% lead free, cadmium free and BPA free and are available in 300ml, 500ml and 800ml sizes. Each jar has a distinctive shelf presence with its iconic curved waist and 0.5mm - 0.8mm relief grape embossing. Whether you're sourcing for a speciality food business, a hospitality facility or for retail distribution, these jars are built to perform and present well.

Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern

Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern

Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern




Who Uses These Jars?

Speciality Food Producers & Preserve Brands

They're used by jam makers, pickle manufacturers, honey packers and artisan sauce labels when the display on the shelf is as important as the goods within. The tactile grape embossing is a visual quality cue that can reduce secondary ornamental labelling requirements on retail shelves.

Buyers: Hospitality & Food Service

Farm-to-table restaurants, boutique hotels and buffet operators utilise this jar for cold brew coffee, flavoured water, tiered desserts and condiment service. The curved waist gives you more grip and pour control, while the embossed design helps to minimise the appearance of surface condensation.

Candle & Gift Box Manufacturer

When lighted, the grape relief can be used by candle makers who wish to make use of both its heat resistance and its shadows. The jar is also a perfect gift dish for honey, spice sets or home made preserves.

E-Commerce Sellers & Wholesale Distributors

For buyers looking for consistent quality across repeat orders, the production process is standardised, and the multi-point inspection technique will help to mitigate supplier risk.

Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern - Complete Set of Manufacturing Assembly Lines

Product Specifications

Feature Details
Model Numbers FP-M-007, FP-M-008, FP-M-009
Available Capacities 300ml, 500ml, 800ml
Jar Heights 13cm, 16.2cm, 17.1cm
Jar Diameters 7.9cm, 8.9cm, 9.4cm
Jar Weights 231.8g, 357.1g, 406.9g
Material Food-grade lead-free glass
Shape Cylindrical with curved waist
Sealing Type Screw cap (twist lid/aluminum/plastic options)
Color Options Clear transparent, customizable colors
Surface Options Gold stamp, frosting, hot stamping, silk screen printing, heat transfer, spraying, engraving

Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern - Certifications

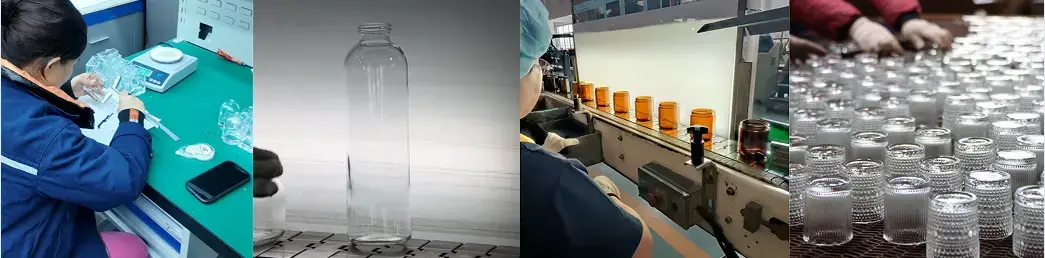

Quality Inspection Process

Each jar in the Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern is put through a rigorous inspection before it is shipped from the plant.

Wall Thickness Uniformity

Each jar is tested ultrasonically at the waist curvature. At that time a minimum wall thickness of 1.5mm is required to ensure structural integrity under pressure or hot fill processes.

Quality of Annealing

Each batch of polarised light is stress tested in accordance with ASTM C148. This process identifies internal stresses that may lead to damage in shipping or use.

Embossing Explanation

Each grape design is clean and homogeneous, with no ghosting effects or sharp edges that could compromise handling safety, as seen in the visual inspection.

Dimensional Tolerances

The T/E size of the neck finish is used to verify it will work with conventional 70mm and 86mm CT lids, an important consideration when incorporating these jars into an existing capping line.

Vacuum Retention Test

All production batches are put through a 24-hour vacuum drawdown test to assure the hermetic seal of the plastisol liner to the lip of the jar. This is especially true for acidic preserves such as pickled and fermented foods.

All jars are CE, FDA, SGS and LFGB certified with documentation for import compliance in most major markets.

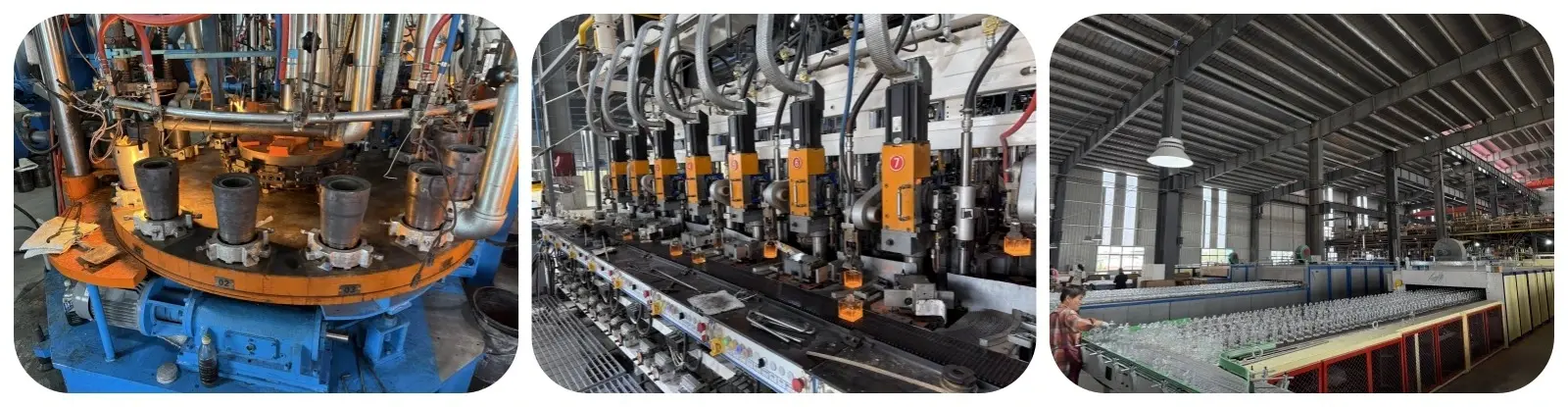

Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern - Integrated Industry and Trade

Production Process

Step 1 — Raw Material Sourcing

The high-purity soda-lime glass batch ingredients are supplied via long-term supplier contracts to ensure consistent raw material quality.

Step 2 — Glass Melting

Materials are charged into glass furnaces. This stage is held at a constant melt temperature to manage glass density and optical clarity.

Step 3 — Pressing and Shaping

Molten glass is pushed into precision moulds that create the curved-waist contour and grape relief pattern at the same time. The depth of embossing is in the range of 0.5mm to 0.8mm calibrated to obtain clear light refraction without impairing the structural performance.

Step 4 — Annealing

The jars so formed travel through a controlled annealing lehr where internal stresses are gradually relieved. Polarised light examination conducted as per ASTM C148 confirmed that stress levels are within acceptable ranges.

Step 5 — Quality Control

At this point ultrasonic wall thickness testing, dimensional checks of the neck finish, inspection of the clarity of the embossing and vacuum seal tests are undertaken.

Step 6 — Customisation & Surface Finishing.

Options include screen printing, laser engraving, coloured glass treatment, distinctive lid colour in silver, gold or black per customer specifications.

Step 7 — Shipping & Packaging

Depending on your needs jars are then packed in bulk cartons, personalised gift boxes or foam-insert trays. Sea Freight, Air Freight & Express Delivery With Complete Documentation Support.

Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern - Packaging Workshop

FAQ

Q: What size lids will work on these jars?

A: These jars are compatible with conventional 70mm & 86mm continuous thread (CT) closures. In production the neck finish T/E dimension is checked to maintain consistent fitment batch to batch.

Q: Do you offer bespoke logo embossing or screen printing?

A: Options for customisation include embossed branding, screen printing, laser engraving, distinctive capacity sizes, tinted glass and custom hues of metal lids like as silver, gold or black.

Q: Are these jars good for hot-fill canning?

A: Glass meets ASTM C147/C148 and is capable of withstanding a thermal shock differential of up to 42°C (107°F) making it appropriate for classic hot-fill canning applications.

Q: What is the minimum thickness of the waist wall?

A: The wall thickness at the curvature of the waist has to be a minimum of 1.5mm, which is monitored by ultrasonic testing throughout manufacture.

Q: How long does it take to receive a sample?

A: Lead time: 3-5 days sample. Samples are free of charge, the client pays for the shipment.

Q: What certifications does this product hold?

A: Yes, the jars have CE, FDA, SGS, LFGB standards which may meet the food grade and import documents requirements for most foreign markets.

Vintage Curved-Waist Mason Jar Set with Embossed Grape Pattern - Company Size
